ريليه توصيل وفصل Dry Contact سمارت

الوصف

ريليه توصيل وفصل سمارت متعدد الاستخدام

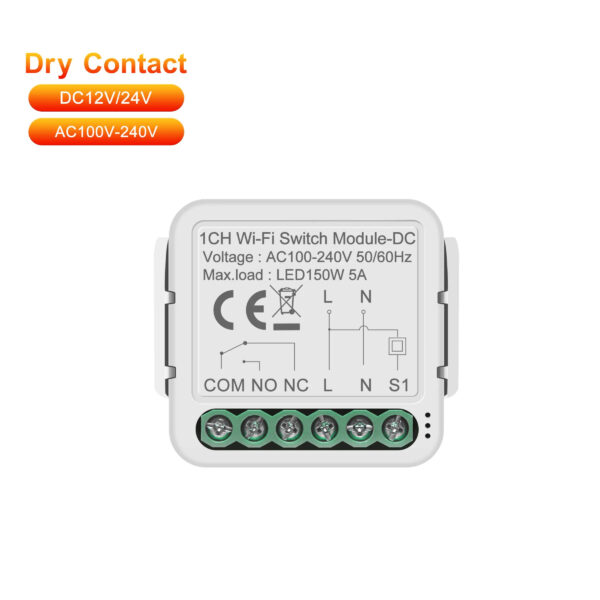

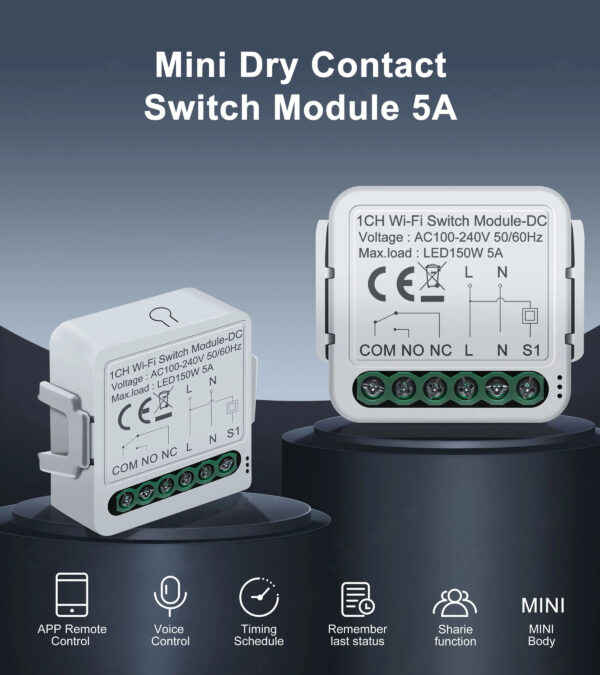

What’s Dry Contact Module?

The dry contact module is a versatile electrical switch that responds to external signals, controlling other electrical equipment. With no need to worry about directions or polarity during installation, simply ensure the correct signal current and voltage levels are maintained.

Why Choose Dry Contact Module?

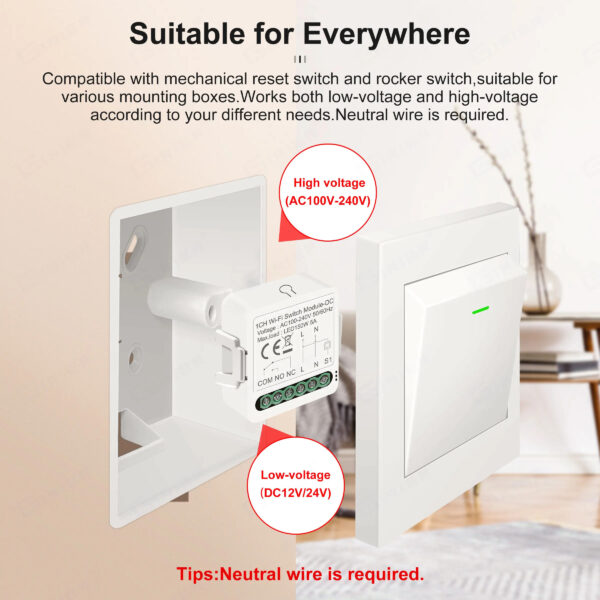

-Compatible with mechanical reset switch and rocker switch,suitable for various mounting boxes.

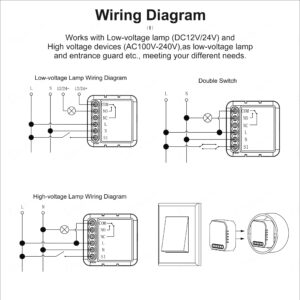

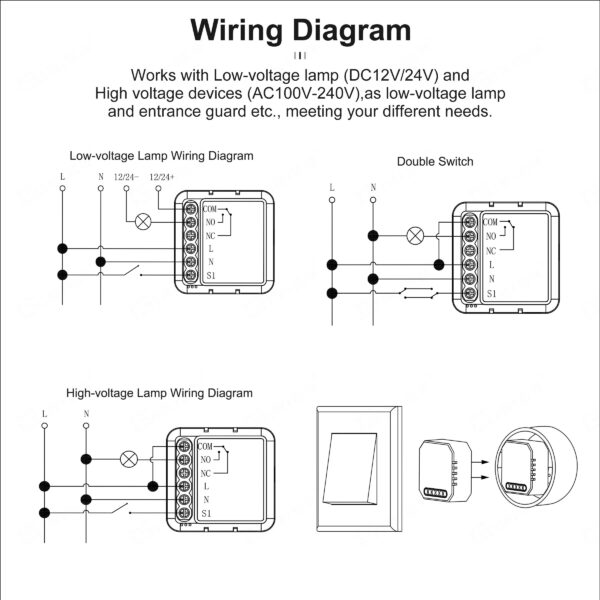

-Works both low-voltage and high-voltage according to your different needs.

-Neutral wire is required.

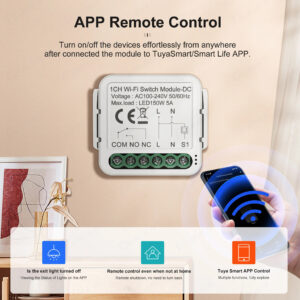

-APP Remote Control

-Turn on/off the devices effortlessly from anywhere after connected the module to TuyaSmart/Smart Life APP.

-Convenient Voice Control

-Just need simple voice commands to trigger the dry contact through Alexa/Google Home Assistant/Alice,turn on/off the device effortlessly and more conveniently.Enjoy your smart life.

-Timer Schedule

-With flexible timer setting, you can trigger connected devices on time while saving energy.

-Relay Status Function

-With Relay Status Function, you won’t have to worry about power outages as you can set on/off/remember the last status of the smart dry contact as relay status.

-Professional Certificates

-Trust in our professional certifications and high-quality products to provide peace of mind and ensure safety.

-Sharing Function

-Share the device to your family and friends,enjoying smart life together

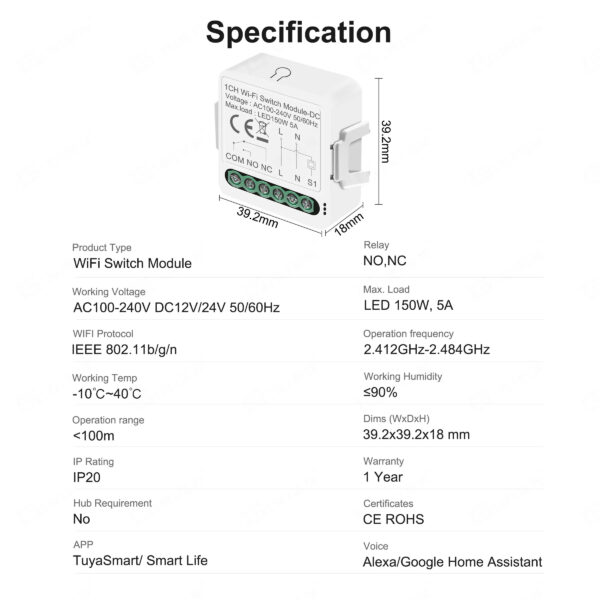

SPECIFICATION

Product Type: WiFi Switch Module
Relay: NO,NC
Working Voltage: AC100-240V 50/60Hz;DC12V/24V
Max. Load: LED 150W, 5A
Operation Temp.: -10℃~ +40℃
Working Humidity: ≤90%
WIFI Protocol : IEEE 802.11b/g/n
Operation Frequency: 2.412GHz-2.484GHz
Operation Range: <100m
Dims (WxDxH): 39.2×39.2×18 mm
IP Rating: IP20
Warranty: 1 year
Certificates: CE ROHS
APP: TuyaSmart/ Smart Life
Voice: Alexa/Google Home Assistant
